SITE BITE: Converting the Microchannel in a Trane® TCD600B unit.

Our team recently completed another successful microchannel conversion project for a telecommunications client based in South Texas. This specific Trane model featured an original microchannel system composed of eight MCHX coils. During the conversion process, we constructed two larger coils, making the installation process more manageable while upgrading the existing all-aluminum microchannels to more robust and efficient copper tubing alternatives.

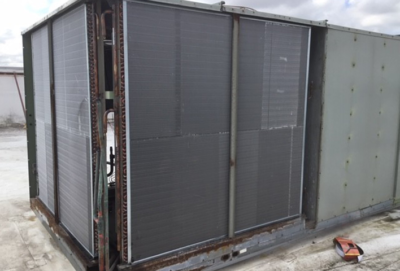

Before: Trane unit with eight, all-aluminum microchannel coils.

The installation went off without a hitch, allowing the customer to reinstall the new copper tube coils with minimal adjustments. Each coil measures over 5 feet tall and 6 feet wide, weighing approximately 175 pounds each. The transition proved to be both practical and efficient, ensuring a seamless integration into the existing setup.

After: Our two, copper tube, aluminum fin coils.

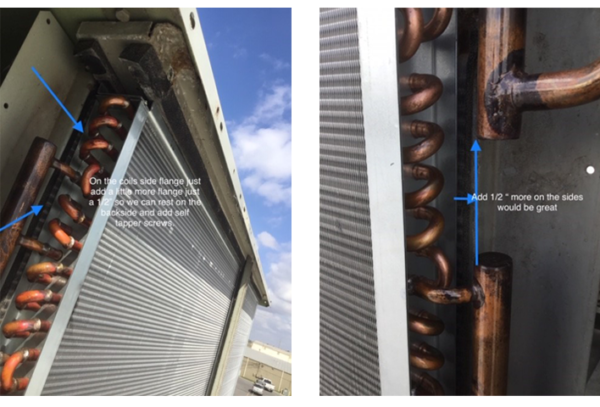

Impressed with the results and the reliability of the upgraded system, the customer reached out to us again to replace additional Trane RTUs on a quarterly basis using our microchannel conversion services. They also requested a minor modification to the length of the end plate flange, extending it by half an inch. This adjustment would increase the flange length to 1.5 inches, enabling the customer to rest the unit’s casing on the flange and secure it with self-tapping screws for added stability.

As the saying goes, a picture speaks a thousand words. The customer shared some excellent images of the newly installed coils, along with detailed specifications for the modifications needed in the remaining units.

Partnering with Nationwide Coils offers clients more than just expertise in MCHX conversions. We specialize in customizing the design of commercial HVAC coils, even providing tailored OEM replacements that competitors often cannot match. While many original equipment manufacturers (OEMs) struggle to convert microchannels or adapt them to meet specific installation needs, Nationwide Coils excels in delivering solutions that enhance performance and simplify maintenance.

Consider upgrading your all-aluminum microchannels to copper tube, aluminum fin configurations. This upgrade addresses common leakage issues found in OEM MCHX coils, improving system reliability and serviceability without sacrificing any of the original equipment's efficiency. Trust Nationwide Coils for a cost-effective and efficient solution to keep your HVAC systems running smoothly.

Are you interested in exploring a microchannel conversion? Reach out to us via email anytime. All we need is the unit's make and model number to get started!
